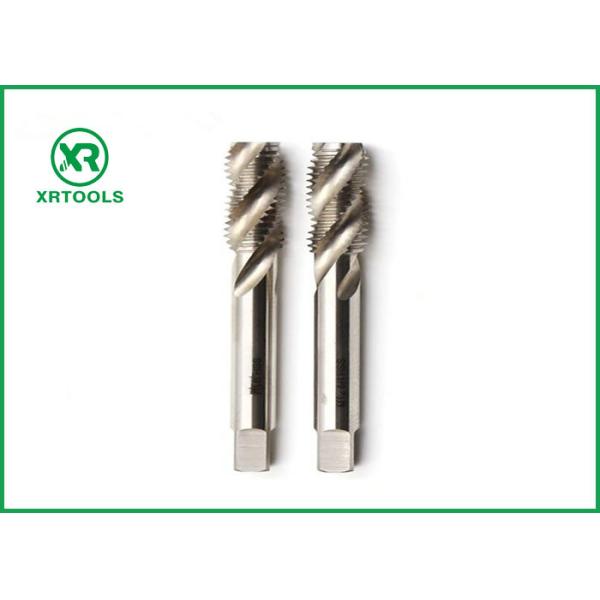

2 - 3 Pitch Hss M35 Spiral Flute Machine Tap , Right Hand Modified Bottoming Tap ISO529 Standard

  • 1
  • 2

Brand Name : STARRY

Model Number : 1/8inch to 1 inch

Certification : ISO9000

Place of Origin : CHINA

MOQ : 200 pcs

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 15000pcs per day

Delivery Time : 35days

Packaging Details : plastic box

Material : Hss-4241;HSS-4341;HSS-4341;HSS-M2;HSS-M35

Produce Name : ISO529 Spiral flute machine tap

Size : UNC UNF BSW BSF

Type : tap

Surface : Fully Ground

Standard : ISO529

Precision : 6H

Application : Manual Tapping , Thread Tapping

Flute : spiral flute

Spiral Angle : 35°

Hardness : 61-66HRC

Contact Now

ISO529/DIN371/376 Spiral Flute machine taps.

2 - 3 Pitch Hss M35 Spiral Flute Machine Tap , Right Hand Modified Bottoming Tap ISO529 Standard

ISO529 Taps,Fully Ground,hardness HRC62-63°.
ISO 529 Machine Tap,fully ground,bright finished.
Form C: chamfer 2-3 pitch.
hardness HRC62-64°,Tolerence: 6H,Right Hand.
Suitable for tapping blind hole
Laser-printing as per customer's requirement.
Material: HSS M2/M35

HSS Spiral flute machine tap

Standard:

DIN/ANSI/JIS

Flute:

sprial flute

Thread/Pitch

Coarse/ Fine

Size:

M2-M60,BSW,UNC.

Hole type:

Sprial flute for blind hole

Working machine

Lathe, Radial Drilling machine, Bench Drill Machine, Pillar Drill machine, Vertical Milling machine

SIZE OVERALL LENGTH THREAD LENGTH
1/8-40 48 11
3/16-24 58 16
3/16-32 58 16
7/32-28 62 17
1/4-20 66 19
1/4-26 66 19
9/32-32 66 19
5/16-18 72 22
5/16-22 72 22
3/8-16 80 24
3/8-20 80 24
7/16-14 85 25
7/16-18 85 25
1/2-12 89 29
1/2-16 89 29
9/16-12 95 30
9/16-16 95 30
5/8-11 102 32
5/8-14 102 32
11/16-11 112 37
11/16-14 112 37
3/4-10 112 37
3/4-12 112 37
7/8-9 118 38
7/8-9 118 38
1-8 130 45
1-10 130 45

Packing:plastic box,1pcs one palstic box,we can supply rose brand plastic box also.then put in color inner box.
